GOTHE electrical engineering for hazardous areas
We offer GOTHE & CO products perfectly suited for the construction of flexible power supply lines, which are exported worldwide and used in shipbuilding, marine, petrochemical industries, as well as in mining, power plants, for supplying power to construction sites, for the construction of waterworks and water treatment plants, and wherever a reliable power supply is a basic requirement.

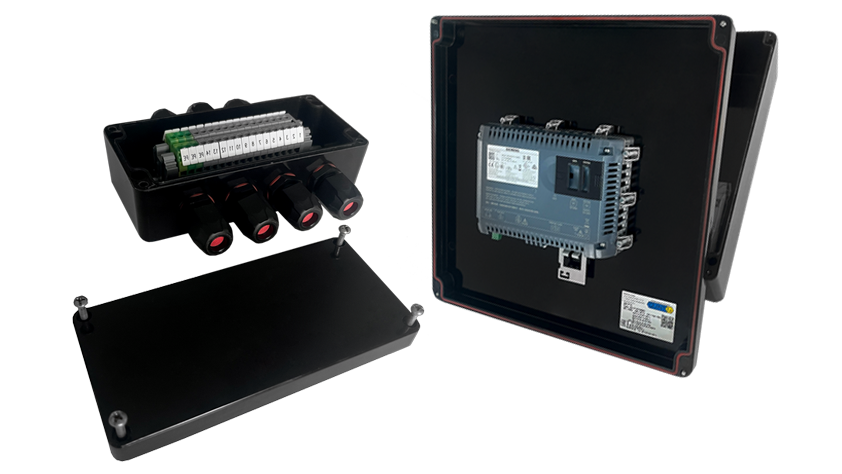

CONNECTION AND DISTRIBUTION BOXES up to 36 kV
Available in explosion-proof, IP68 and industrial steel or stainless steel.
HIGH VOLTAGE CONNECTIONS up to 25 kV
Optional with simultaneous connection of fiber optic cables.
CABLE GLANDS FOR CABLES WITH OUTER DIAMETERS FROM 5 TO 122 MM
Available as hot-dip galvanized steel castings or in stainless steel and brass.
PRESSURE PLUGS, EQUALIZING (COMPENSATION) DEVICES AND OTHER…
Available in stainless steel and brass.
We manufacture components from brass, iron, stainless steel and hot-dip galvanized steel castings. Our products meet stringent standards and are used in the marine, shipbuilding, petrochemical, power generation, mining, and infrastructure construction industries – wherever reliable power supply is important.
Who do we work for?
Among others, we serve pump and engine manufacturers, chemical and petrochemical companies, tunneling contractors, ports, water installations and renewable energy suppliers.
Why CORONA Service?
We are flexible – we provide tailor-made solutions, even for smaller orders. We focus on quality, precision workmanship and the practical experience of our team. When you choose us, you get a reliable partner who understands your technical and business needs.
Connector housing
| Product | Type of construction | Voltage | Ø of cable or line (min – max) | Type of protection |
 | 53217 | bis 1 kV AC/DC | 0,5 – 16mm² |  I M2 Ex eb I MbII 2G Ex eb IIC T6 Gb |
 | 53252 | 1100 V 3 AC/DC | 35 – 185mm² | I M2 Ex eb I MbII 2G Ex eb IIC T6 bzw. T4 GbII 2D Ex tb IIIC T80 °C Db |
 | 53139 | 1 kV 3 AC | 16 – 70mm² | I M2 Ex eb I MbII 2G Ex eb IIC T6 Gb |
 | 53130 | 6,6 kV 3 AC | 16 – 150mm² | I M2 Ex eb I MbII 2G Ex eb IIC T6 GbII 2D Ex tb IIIC T85°C Db |
 | 53110 | 11 kV 3 AC | 35 – 150mm² | I M2 Ex eb I MbII 2G Ex eb IIC T6 bzw. T3 GbII 2D Ex tb IIIC T80 °C bzw. T195 °C Db |
 | 53064 | bis 6.6 kV 3 AC | (siehe Datenblatt) | II 2G Ex eb IIC T6 Gb |
Distributor housing
| Product | Construction type | Voltage | Cable or line Ø (min – max) | Type of protection |
 | 53218 | bis 1 kV AC/DC | 0,5 – 16mm² | I M2 Ex eb I MbII 2G Ex eb IIC T6 Gb |
 | 53253 | 1100 V 3 AC/DC | 35 – 185mm² | I M2 Ex eb I MbII 2G Ex eb IIC T6 bzw. T4 GbII 2D Ex tb IIIC T80 °C Db |
Cable glands – ATEX
| Product | Construction type | Voltage | Cable or line Ø (min – max) | IP protection | Type of protection |
 | 54010 | 6 kV – 35 kV | 45 – 66mm 10 – 185mm²50 – 72mm 10 – 185mm²72 – 100mm 10 – 500mm² | IP 66/67 | I M2 Ex eb I MbII 2G Ex eb IIC GbII 2D Ex tb IIIC Db |
