Ex e and Ex i junction boxes – Electrical protection for potentially explosive atmospheres
In industry and many other places where there is a potential risk of explosion, special junction boxes are used to ensure safety and protection. Ex e and Ex i junction boxes are the two main categories of this type of box, which differ in the type and level of protection they provide.

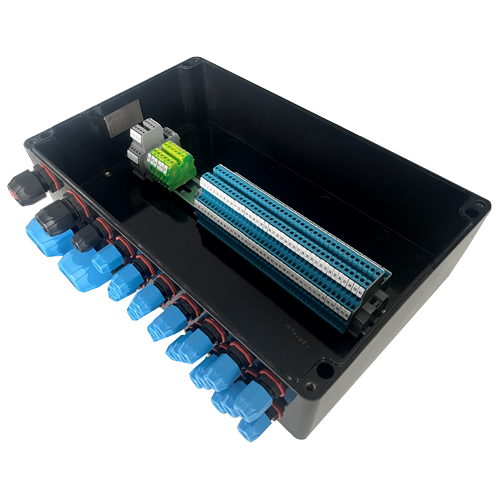

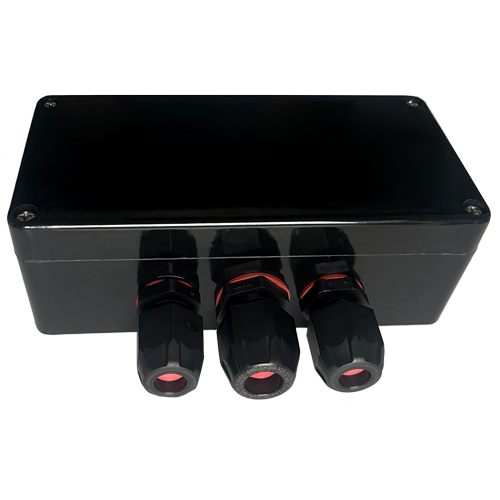

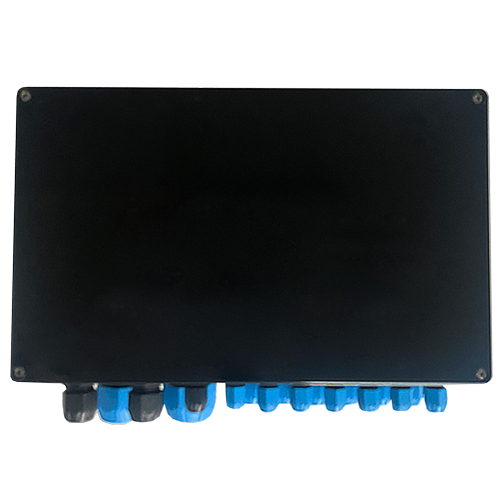

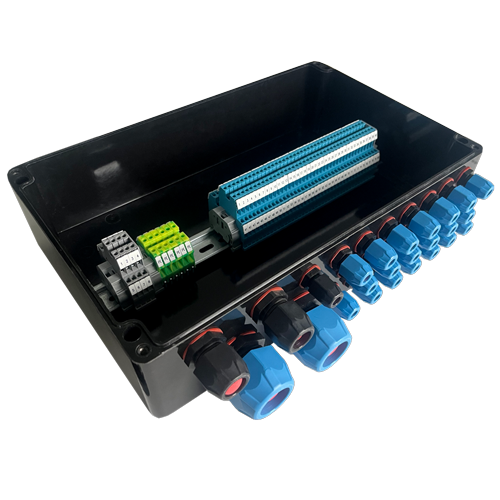

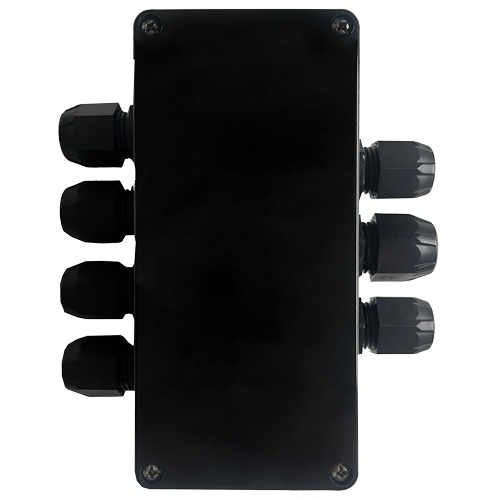

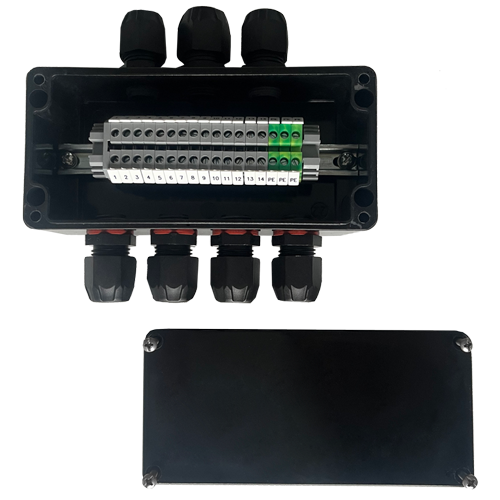

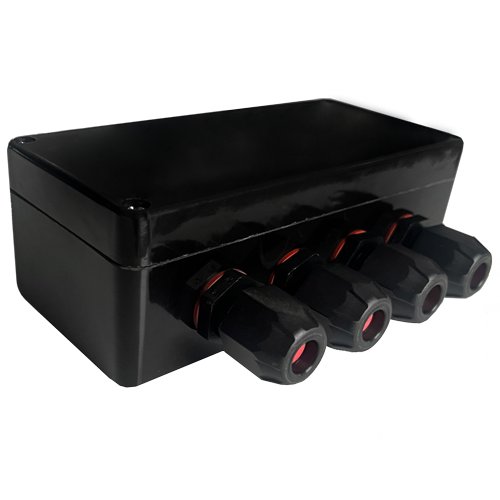

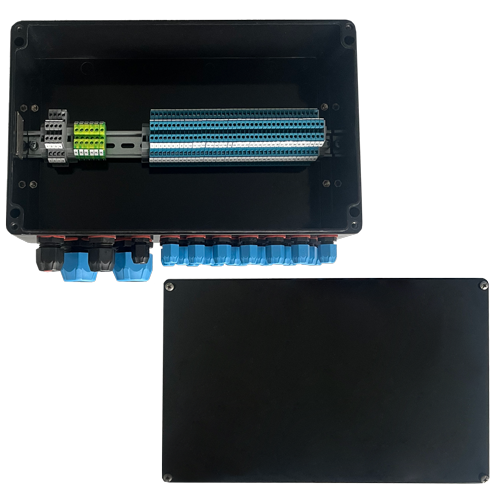

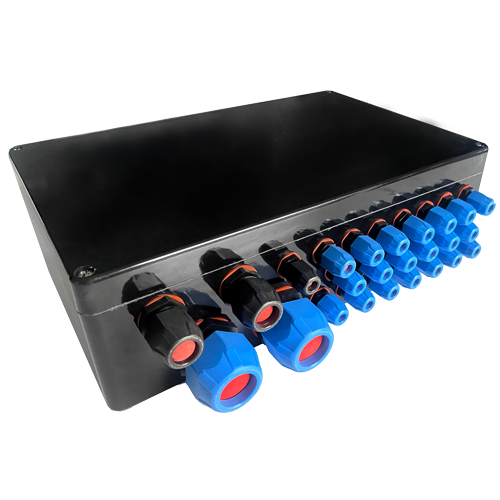

Junction boxes are used to connect and branch cables and wires using certified connection terminals. The boxes are equipped with terminals adapted for connecting uninsulated wire/cable ends. Ex-rated junction boxes are designed for use in explosion hazard zones 1, 2, 21, and 22. Due to their lightweight plastic construction, high corrosion and temperature resistance, they provide safe protection even when exposed to extreme environmental conditions, aggressive chemicals, or high mechanical loads.
Explosion-proof junction boxes are specialized electrical enclosures designed to contain any potential ignition sources, preventing them from spreading and causing damage. They are used in potentially explosive atmospheres to provide a safe and secure location for electrical connections and to protect equipment, cables, and other components from potential damage.
There are several factors that make junction boxes a critical component in potentially explosive atmospheres. First, they are made of materials that are resistant to specific hazardous substances present in the environment. This includes materials such as stainless steel, aluminum, and fiberglass, which are able to withstand the corrosive effects of harsh chemicals and dangerous gases.
Second, explosion-proof junction boxes are designed to contain any sparks or arcs that may occur within the box. This is achieved through a variety of methods, including the use of fire barriers, spark arrestors, and explosion vents. These features work together to prevent the spread of any ignition sources, ensuring the safety of personnel and equipment.
Beyond their safety features, explosion-proof junction boxes also offer a number of practical benefits. They provide a secure location for electrical connections, helping to protect against accidental disconnections and reducing the risk of electrical failures. They also offer ample space for cable routing and organization, making it easier to manage complex electrical systems.
Due to their lightweight plastic construction, high corrosion resistance, and temperature resistance, junction boxes are used in all industries where aggressive media are present in potentially explosive areas.
What types of junction boxes are there?
There are several different types of explosion-proof junction boxes available, each designed for use in specific hazardous areas. These include boxes that are suitable for use in areas with explosive gases, dusts, or liquids, and those that are designed for use in harsh environments such as the offshore market or mining.
Ex e junction boxes are devices designed for use in hazardous areas where there is a possibility of an electric spark or hot body being generated. These boxes are equipped with special insulators that absorb and ground sparks, preventing them from spreading.
Ex i junction boxes are devices that provide additional protection against internal sparks, caused, for example, by damage to wires or devices inside the box. These boxes are designed to prevent sparks from entering the box, thus protecting the environment from the risk of explosion.
Both categories of junction boxes are equipped with additional safeguards, such as seals and gaskets, which prevent gases and dust from entering the box. They are also subjected to rigorous testing to ensure that they meet all required safety standards and are capable of providing an adequate level of protection.
In addition, Ex e and Ex i junction boxes are available in various sizes and configurations, allowing you to select the right device for your specific application. They can be equipped with different types of terminals, such as screw terminals, compression terminals, or connector terminals, to enable easy and safe connection of wires and cables.
It is important to note that Ex e and Ex i terminal boxes must be used in accordance with the manufacturer’s requirements and recommendations. Improper use of these boxes can lead to dangerous situations and hazards to the environment. Therefore, it is important to choose only proven and certified junction boxes and to use them in accordance with the instructions for use.
In summary
Ex e and Ex i junction boxes are essential devices in industry and other locations where there is a potential risk of explosion. These boxes provide an adequate level of protection and safety, and their various configurations and options allow you to select the right device for your specific application. To ensure maximum effectiveness and safety, it is important to use certified terminal boxes and follow the manufacturer’s requirements and recommendations.
